Model

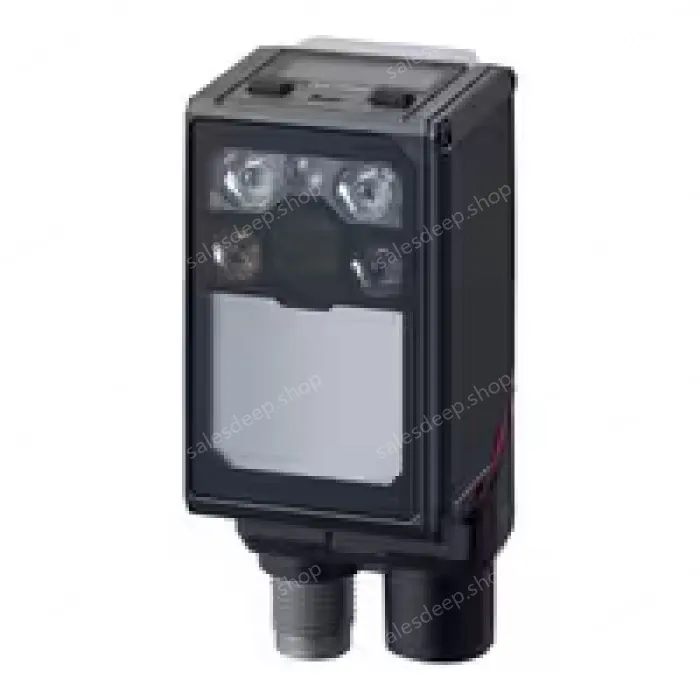

SR-X300 ^*1

Type

SR-X300: Standard type (2.3 megapixels)
SR-X300 + SR-XHR: High-resolution type

Receiver

Sensor

CMOS image sensor

Number of pixels

1920 × 1200

Focus

Auto^*2

Emitter

Illumination light source

High-intensity red/white LED^*3

Pointer light source

High-intensity green LED^*3

Reading specifications

Supported symbols

2D codes

QR, MicroQR, DataMatrix(ECC200), DMRE, GS1 DataMatrix, PDF417, MicroPDF417,
GS1 Composite (CC-A/CC-B/CC-C), DotCode, Maxi Code, Aztec Code

Barcodes

CODE39, ITF, 2of5 (Industrial 2of5), COOP 2of5, NW-7 (Codabar), CODE128, GS1-128, GS1 DataBar, CODE93,
JAN/EAN/UPC, Trioptic CODE39, CODE39 Full ASCII, Pharmacode, Postal (Japan Postal, IMB)

Minimum resolution

2D codes

SR-X300: 0.024 mm 0.0009"
SR-X300 + SR-XHR: 0.010 mm 0.0004"

Barcodes

0.082 mm 0.0032"

Reading distance

SR-X300: 70 to 1000 mm 2.76" to 39.37"
SR-X300 + SR-XHR: 32 to 47 mm 1.26" to 1.85"

Reading field of view

SR-X300: 104 × 65 mm 4.09" × 2.56"
(at a distance of 300 mm 11.81")
SR-X300 + SR-XHR: 12.3 × 7.7 mm 0.48" × 0.30"
(at a distance of 47 mm 1.85")

I/O specifications

Control input

Number of inputs

2

Input type

Bidirectional voltage input

Maximum rating

30 VDC

Minimum ON voltage

15 VDC

Maximum OFF current

0.2 mA

Control output

Number of outputs

3

Output type

Photo MOS relay output

Maximum rating

30 VDC

Maximum load current

50 mA or less for 1 output, or 100 mA or less in total for 3 outputs

Leakage current when OFF

0.1 mA or less

Residual voltage when ON

1 V or less

Ethernet

Communication standard

IEEE 802.3-compliant 100BASE-TX

Supported protocols

TCP/IP, SNTP, FTP, SFTP, HTTP, HTTPS, BOOTP, EtherNet/IP®, PROFINET,
KV STUDIO, MC protocol, OMRON PLC link

Serial communication

Communication standard

RS-232C-compliant

Communication speed

600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

Supported protocols

No-protocol, KV STUDIO, MC protocol, SYSWAY

USB

Communication standard

USB 2.0 High Speed compliant

Ratings

Power voltage

24 VDC +25%/-20%

Current consumption

Approx. 750 mA

Environmental resistance

Enclosure rating

IP65/IP67 (IEC60529)^*4

Ambient temperature

0 to +45°C 32 to 113°F

Storage temperature

-10 to +50°C 14 to 122°F

Relative humidity

35 to 85% RH (No condensation)

Storage relative humidity

Weight

SR-X300: Approx. 200 g 7.06 oz
SR-X300 + SR-XHR: Approx. 225 g 7.94 oz
