Model

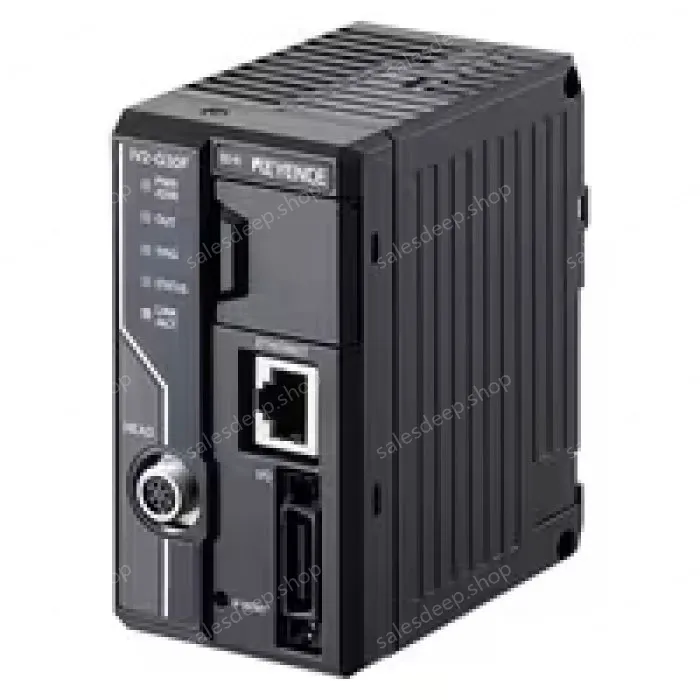

IV2-G30F

Type

Learning/standard type

Tools

Available modes

Learning mode / Standard mode

Standard mode built-in tools

Outline, Color area^*1, Area^*2, Edge pixels, Color average^*1, Brightness average^*2, Width, Diameter, Edge presence, Pitch, OCR, Color/brightness prohibit, Position adjustment, High-speed position adjustment (1-axis edge/2-axis edge)

Number of tools

Detection tools: 16 tools, position adjustment tool: 1 tool^*3

Switch settings (programs)

128 programs (when using SD card) / 32 programs (when not using SD card)

Indicators

PWR/ERR, OUT, TRIG, STATUS, LINK/ACT, SD

Image history

Number of storable images

1000 images ^*4

Save conditions

Selectable between NG only, NG and OK near threshold^*5, and All ^*4

Image data transfer

Transfer destination

Selectable between SD card and FTP server

Transfer format

Selectable between bmp, jpeg, iv2p, and txt

Transfer conditions

Selectable between NG only, NG and OK near threshold^*5, and All

Analysis information

RUN display

Tools list (Judgment results, degree of similarity, or degree of similarity bar display) ^*6

RUN information

Switchable between OFF, histogram, processing time, count, and output monitor
Histograms: Histogram, degree of similarity (Max., Min., Ave.), Number of OKs, Number of NGs
Processing time: Processing time (latest, Max., Min., Ave.), Image capture interval (latest, Max., Min., Ave.)
Count: Trigger numbers, Number of OKs, Number of NGs, Trigger errors, Strobe errors
Output monitor: ON/OFF status by output

Other functions

Image capture function

Image buffer, Image capture range, Digital zoom (2×, 4×), HDR, High gain, Color filter^*1, White balance^*1, Brightness correction

Tool functions

Learning mode: Additional learning
Standard mode: Mask outline, Masking function, Color extraction/exclusion^*1, Color histogram function^*1, Monochrome histogram function^*2, Scaling function

Utilities

Failing sensor list, Failure hold, Test run, I/O monitor, Security settings, Simulator^*7

Input

Type

Switchable between non-voltage input and voltage input
For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit)
For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)

Number of inputs

8 (IN1 to IN8)

Function

IN1: External trigger, IN2 to IN8: Enable by assigning optional functions
Assignable functions: Program switching, Clear error, External master image registration, SD card save cancel

Output

Type

Open collector output; NPN/PNP switchable, N.O./N.C. switchable
For open collector NPN output: Maximum rating of 26.4 V, 50 mA, residual voltage of 1.5 V or less
For open collector PNP output: Maximum rating of 26.4 V, 50 mA, residual voltage of 2 V or less

Number of outputs

8 (OUT1 to OUT8)

Function

Enable by assigning optional functions
Assignable functions: Total judgment (OK/NG), Run, Busy, Ready, Strobe, Position adjustment result, Judgment result of each tool, Result of the logical operation of each tool, Error, SD card error

Ethernet

Standard

100BASE-TX/10BASE-T

Connector

RJ45 8-pin connector

Network function

FTP client, SNTP client

Interface compatibility

Built-in Ethernet

EtherNet/IP^Ⓡ, PROFINET, TCP/IP non-procedure communication

Communication unit

EtherCAT^Ⓡ, CC-Link, DeviceNet^Ⓡ, PROFIBUS, RS-232C^*8

Expanded memory

SD card (SD/SDHC) ^*9

Rating

Power voltage

24 VDC ±10% (including ripple)

Current consumption

1.8 A or less (including communication unit and output load)

Environmental resistance

Ambient temperature

0 to +50°C 32 to 122°F (No freezing)

Relative humidity

35 to 85% RH (No condensation)

Material

Main unit case: PC, Power connector: PA/POM, I/O connector: PA, Sensor head connector: Zinc + Ni plating/PA,
Ethernet connector: Copper alloy + Ni plating, Main unit rear heat sink: Aluminum, Main unit rear DIN rail fixing tab: POM, Nameplate: PC

Weight

Approx. 330 g
